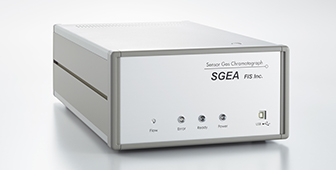

Sensor Gas Chromatograph

Easy operation/Small size/Super sensitivity

FIS Sensor Gas Chromatograph (SGC) realizes quick gas separation and super gas sensitivity by using FIS original short column and FIS semiconductor gas sensor.

Easy operation/Small size/Super sensitivity

Super sensitive measurement of quite small amounts of gas

Since extremely high sensitive semiconductor gas sensor is used as a detector, ppb (parts per billion) level measurement can be realized.

Easy operation/short time measurement

Simply injecting sample gas starts measurement automatically. The measurement is completed in 4 or 8 minutes.

No carrier gas cylinder required

SGC uses ambient air as carrier gas so that high pressure gas cylinder is not necessary.
Note: Some models need the cylinder.

Small size/light weight/Portable

Our original technology including a short length column has realized a small size (B4 size) and light weight (5.5kg) unit with excellent portability that does not require a limited installation site.

Continuous measurement (automatic gas injector)  * Optional feature

Automatic continuous measurement is possible by setting total measurement duration time or total measurement times.

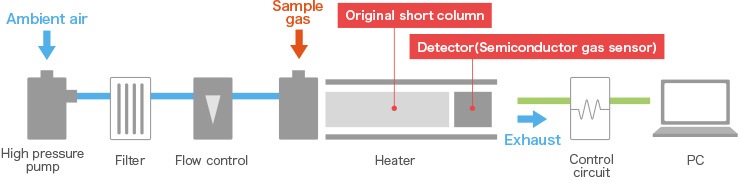

Basic configuration

Simple configuration using ambient air as carrier gas and highly sensitive semiconductor gas sensor as a detector realizes super sensitive measurement.

Application fields

SGC can be used to detect very small gas in various fields.

Factory environment measurementFactory environment measurement
Environmental measurement inside and outside a factory, malodor processing ability check, etc.
Garbage odor controlGarbage odor control
Garbage released odor control, odor prevention in the neighborhood, etc.
Deodorizer performance evaluationDeodorizer performance evaluation
Performance and deterioration evaluation for deodorizers, etc.
Food freshness check/food production quality controlFood freshness check/food production quality control
Quality control and freshness check in food processing process, etc.
Very small amount gas analysis in R&DVery small amount gas analysis in R&D
Very small amount gas analysis in R&D of environmental, medical, and micro-organism fields

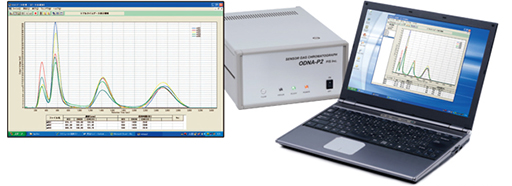

Real time data viewing with attached software

SGC is supplied with a standard software displaying the real-time measurement results on PC. This software has various features such as chromatography chart, gas concentration display, and continuous measurement (optional) display.
* Please supply your own PC.

PC is not included.

Customizable

SGC can be customized to meet your demand.

Examples:
・For use with high purity air cylinder as carrier gas, if the ambient air around SGC is polluted, etc.
・Automatic gas injection and continuous measurement (continuous monitoring is possible by automatic sampling function)
・For the measurement of other gas than currently available gases
Click button to watch the
product video.

Pamphlet DownloadPDF

Specifications

Item Contents
Product name Sensor Gas Chromatograph
Model ODSA-P2 ODNA-P2 SGHA-P2 SGEA-P2 SGVA-P2
Leaflet
(PDF)
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Technical document
(PDF)
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Download
PDF
PDF
Measurement principle Gas chromatography using semiconductor gas sensor
Target gases (*1) Hydrogen sulfide
Methyl mercaptan
Dimethyl sulfide
Ammonia
Trimethylamine
Hydrogen
Carbon monoxide
Methane
Acetone
Ethanol
Acetaldehyde
Isoprene
Toluene
Ethylbenzene
Xylene
Styrene
Measurement concentration Hydrogen sulfide: 5ppb to 1ppm

Methyl mercaptan: 5ppb to 1ppm

Dimethyl sulfide: 5ppb to 1ppm
Ammonia: 50ppb to 100ppm

Trimethylamine: 50ppb to 10ppm
Hydrogen: 1 to 150ppm (*2)

Carbon monoxide: 1 to 150ppm

Methane: 1 to 150ppm
Acetone: 100ppb to 20ppm

Ethanol: 100ppb to 100ppm

Acetaldehyde: 100ppb to 100ppm

Isoprene: 100ppb to 20ppm
Toluene: 5ppb to 1ppm

Ethylbenzene: 5ppb to 1ppm

Xylene: 5ppb to 1ppm

Styrene: 5ppb to 1ppm
Minimum display resolution 0.1ppb or 0.1ppm
Warm-up time 5 to 60 min (*3)
Measuring time 4 min 4 min (*4) 4 min 8 min 8 min
Sampling gas amount (*5) 2cc 2cc 2cc 5cc 5cc
Measurement results On PC display (*6)
Sample injection Manual injection with a syringe. Auto-start of the measurement (*7)
Carrier gas Pumped and filtered clean ambient air (*8) Cylinder air
Signal output via RS232C (*9)
Power supply 100 to 240V AC
Power consumption Approx. 40VA
Measurement 260(W) X 135(H) X 340(D) mm 260(W) X 135(H) X435(D) mm
Weight 5.5Kg 6.5Kg
Operating temp/humid Temperature: 10 to 30C Humidity: 20 to 80%RH (No dew condensation)
Storage temp/humid Temperature: -20 to 60C Humidity: 20 to 80%RH (No dew condensation)
  • (*1) Only one gas can be selected. Additional charge for other gas(es).
  • (*2) When Hydrogen-free cylinder air is used, this range will be 50ppb to 150ppm (Option)
  • (*3) Time is automatically adjusted depending on the unit stability.
  • (*4) When Trimethylamine is selected, the time will be 8 min.
  • (*5) This amount can be changed within the range of 0.2 to 5cc. This may not be realized due to accuracy requirement.
  • (*6) Exclusive measurement analysis software is attached.
  • (*7) Automatic and continuous sampling is available (option).
  • (*8) Cylinder air is available as carrier gas (option)
  • (*9) USB port on PC can be used with an attached USB-RS232C conversion cable.
