Applicable Products：
-
SB-11A-00
Usage：Home gas leak detector/Industrial leak detectorTarget gas：LNG(Methane)/LPG(Propane, butane)/H2 -
Target gas LNG(Methane),LPG(Propane, butane),H2 Description Compact, low power consumption, excellent responsiveness, and highly sensitive sensor for various hydrocarbons. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-12A-00
Usage：Home gas leak detector/Industrial leak detectorTarget gas：LNG(Methane) -
Target gas LNG(Methane),H2 Description Compact, low power consumption sensor with excellent methane selectivity. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Charcoal filter Size φ10.0 x 20mm Weight 1.2g
-
SB-15-00
Usage：Industrial leak detectorTarget gas：LPG(Propane, butane) -
Target gas LPG(Propane, butane) Description Compact, low power consumption, excellent responsiveness, and highly sensitive sensor for propane LPG/butane Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-500-12
Usage：Home gas leak detector/Industrial leak detectorTarget gas：CO -
Target gas CO Description Sensor with high sensitivity and long life to carbon monoxide. UL compliant product Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V x 5sec. + DC 0.2V x 20sec.
Circuit voltage/less than DC 5VPower consumption Average：34ｍW Filter Charcoal filter Size φ10.0 x 20mm Weight 1.2g
-
SB-95-12
Usage：Home gas leak detector/Industrial leak detectorTarget gas：LNG(Methane)/CO -
Target gas LNG(Methane)、CO Description A sensor that can selectively detect methane and CO only with one sensor element. UL compliant product Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V x 5sec. + DC 0.2V x 20sec.
Circuit voltage/less than DC 5VPower consumption Average：34ｍW Filter Charcoal filter Size φ10.0 x 20mm Weight 1.2g
-
SB-19-00
Usage：Industrial leak detectorTarget gas：H2 -
Target gas H2 Description Compact, low power consumption sensor with excellent H2 selectivity. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-42A-00
Usage：Refrigerant gas/Industrial leak detectorTarget gas：Refrigerant（R32/R410a/R407C/R1234yf/R454B/R454C/Others) -
Target gas Refrigerant gas（R32/R410a/R407C/R1234yf/R454C/R454B/R22） Description Compact, low power consumption, highly responsive sensor that is highly sensitive to various refrigerant gases. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-43A-00
Usage：Refrigerant gas/Industrial leak detectorTarget gas：Refrigerant（R32/R410a/R407C/R1234yf/R454B/R454C/R290/Others) -
Target gas Refrigerant gas（R32/R410a/R407C/R1234yf/R454C/R454B/R22） Description Compact sensor that is highly sensitive to various refrigerant gases with low power consumption and excellent durability Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Silica filter Size φ10.0 x 20mm Weight 1.2g
-
SB-53-01
Usage：Research・Analysis - Enviromental measurementTarget gas：Ammonia -
Target gas Ammonia Description Compact sensor that is highly sensitive to ammonia with low power consumption and excellent response Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-AQ1-06
Usage：Automobile - Inside air/Air quality - Air purifiersTarget gas：H2/Ethanol/VOC -
Target gas H2、Ethanol、VOC Description Compact sensor that is highly sensitive to gas generated in a living space with low power consumption and excellent response Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SB-30-04
Usage：Alcohol checkerTarget gas：Ethanol/VOC/Halitosis -
Target gas VOC、Breath gas Description Sensor that is highly stable after power-on and highly sensitive to alcohol and various VOCs. Suitable for intermittent operation products. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 0.9V ± 5% Circuit voltage/less than DC 5V Power consumption 120mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SP-11-00
Usage：Home gas leak detectorTarget gas：LNG(Methane)/LPG(Propane, butane)/H2 -
Target gas LNG(Methane),LPG(Propane, butane),H2 Description Sensor that is highly sensitive to various hydrocarbons. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Not included Size φ17.0 x 16.5mm Weight 1.75g
-
SP-31-00
Usage：Industrial leak detectorTarget gas：Ethanol/VOC -
Target gas Ethanol、VOC Description Sensor that is highly sensitive to various VOCs. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Not included Size φ17.0 x 16.5mm Weight 1.75g
-
SP-42A-00
Usage：Refrigerant gas/Industrial leak detectorTarget gas：Refrigerant（R32/R410a/R407C/R1234yf/R454B/R454C/Others) -
Target gas Refrigerant gas（R32/R410a/R407C/R1234yf/R454C/R454B/R22） Description Sensor with excellent response and high sensitivity to various refregerant gases. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Not included Size φ17.0 x 16.5mm Weight 1.75g
-
SP-42AF-00
Usage：Refrigerant gas/Industrial leak detectorTarget gas：Refrigerant（R32/R410a/R407C/R1234yf/R454B/R454C/Others) -
Target gas Refrigerant gas（R32/R410a/R407C/R1234yf/R454C/R454B/R22） Description Sensor with high durability and high sensitivity to various refrigerant gases. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Silica filter Size φ17.2 x 23.3mm Weight 3.4g
-
SP3S-AQ2-01
Usage：Automobile - Inside air/Air quality - Air purifiers/Home appliances/Alcohol checkerTarget gas：CO/Ethanol/VOC -
Target gas CO、Ethanol、VOC Description Compact sensor that is highly sensitive to gas generated in a living space. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Not included Size φ7.6 x 13.4mm Weight 0.6g
-
SP3-61-00
Usage：Air quality - Ozone/Home appliancesTarget gas：Ozone -
Target gas Ozone Description Sensor that is highly sensitive to ozone. Circuit design is easier than SB- series. Sensing principal Semiconductor type Standard operating condition Heater voltage/DC 5.0V ± 4% Circuit voltage/less than DC 5V Power consumption 400mW Filter Not included Size φ14.0 x 18.0mm Weight 1.2g
-
EVM-SB-01-xx
Usage：-Target gas：- -
Description Evaluation module for SB series sensor. (except SB-500-12,SB-96-00,SB-95-12) Sensing principal of mounted gas sensor Semiconductor type Power supply DC5V ± 4% Signal output Voltage（0 - 5 V) Waterproof case Not included Size Circuit board size：37×22㎜
Cable length：10㎝
-
EVM-SP-01-xx
Usage：-Target gas：- -
Description Evaluation module for SP series sensor. Sensing principal of mounted gas sensor Semiconductor type Power supply DC5V ± 4% Signal output Voltage（0 - 5 V) Waterproof case Not included Size Circuit board size：37×22㎜
Cable length：10㎝
-
EVM-SP-02-SP3S
Usage：Automobile - Inside air/Air quality - Air purifiers/Alcohol checkerTarget gas：- -
Target gas CO、Ethanol、VOC Description Evaluation module for SP3S-AQ2-01 to measure sensor output. Sensing principal of mounted gas sensor Semiconductor type Power consumption 210mW Power supply DC5V ± 4% Current consumption 42mA Signal output Voltage（0 - 5 V) Waterproof case Not included Size 37×22×13.4(H)㎜
Cable length：10㎝Weight 5g
-
A1320301-SP61-02
Usage：Air quality - Ozone/Industrial leak detectorTarget gas：Ozone -
Target gas Ozone Description Module for measuring ozone gas. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0 - 250 ppb Power consumption 600mW Power supply DC5V ± 5% Current consumption 120mA Signal output Voltage（0 - 5 V) Waterproof case Not included Size 51 (W) x 37 (D) x 22 (H) mm Weight 15g
-
A1320301-SP61-02F
Usage：Air quality - Ozone/Industrial leak detectorTarget gas：Ozone -
Target gas Ozone Description Module for measuring ozone gas with fan and cable. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0 - 250 ppb Power consumption 700mW Power supply DC5V ± 5% Current consumption 140mA Signal output Voltage（0 - 5 V) Waterproof case Not included Size 65 (W) x 100 (D) x 35 (H) mm Weight 90g
-
A01020-61
Usage：Air quality - OzoneTarget gas：Ethanol -
Target gas Ozone Description Evaluation module for SP3-61-00. This module is for sensor output measurement. Size 22 x 37 x 13(H)mm Weight 5g
-
A051020H-001
Usage：Air quality - OzoneTarget gas：Ozone -
Description Cable for ozone module.
-
IR-93S-04/100
Usage：Automobile - Inside air/Air quality - Air purifiers/Air quality - CO2/Home appliances/Target gas：CO2 -
Target gas CO2 Description Infrared absorption type CO2 sensor. High precision. Sensing principal of mounted gas sensor Infrared type Measurement range 400 - 5000 ppm Power supply DC5V ± 10% Signal output PWM Size 64 (W) x 23 (D) x 10.7 (H) mm Weight 13g
-
FIS3001-00NC-03/50
Usage：Home gas leak detectorTarget gas：LNG(Methane)/CO -
Target gas LNG(Methane)、CO Description Gas calibrated module (mounted SB-95-12) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range CH4 0, 0.03-1 %
CO 0, 30-1000 ppmPower supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3001-00C4-03/50
Usage：Home gas leak detectorTarget gas：LNG(Methane)/CO -
Target gas LNG(Methane)、CO Description Gas calibrated module (mounted SB-95-12) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range CH4 0, 0.03-1 %
CO 0, 30-1000 ppmPower supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3031-00NC-50
Usage：Home gas leak detectorTarget gas：LNG(Methane) -
Target gas LNG(Methane) Description Gas calibrated module (mounted SB-12A) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3031-00C4-50
Usage：Home gas leak detectorTarget gas：LNG(Methane) -
Target gas LNG(Methane) Description Gas calibrated module (mounted SB-12A) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3051-00NC-03
Usage：Home gas leak detectorTarget gas：CO -
Target gas CO Description Gas calibrated module (mounted SB-500-12) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3051-00C4-03
Usage：Home gas leak detectorTarget gas：CO -
Target gas CO Description Gas calibrated module (mounted SB-500-12) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3062-00NC-20
Usage：Refrigerant gas/Home appliancesTarget gas：LPG(Propane, butane) -
Target gas LPG(Propane, butane) Description Gas calibrated module (mounted SB-15C) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range Isobutane 0, 300-10000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3062-00C4-20
Usage：Refrigerant gas/Home appliancesTarget gas：LPG(Propane, butane) -
Target gas LPG(Propane, butane) Description Gas calibrated module (mounted SB-15C) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range Isobutane 0, 300-10000 ppm Power supply DC5V ±5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3072-00NC-10
Usage：-Target gas：H2/Ethanol/VOC -
Target gas H2、Ethanol、VOC Description Gas calibrated module (mounted SB-AQ1) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3072-00C4-10
Usage：-Target gas：H2/Ethanol/VOC -
Target gas H2、Ethanol、VOC Description Gas calibrated module (mounted SB-AQ1) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3082-00NC-50
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Refrigerant（R410a) -
Target gas Refrigerant gas（R410a) Description Gas calibrated module for R410a without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3082-00C4-50
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Refrigerant（R410a) -
Target gas Refrigerant gas（R410a) Description Gas calibrated module for R410a with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3091-00NC-03
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Ammonia -
Target gas Ammonia Description Gas calibrated module (mounted SB-53) without waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-500 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3091-00C4-03
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Ammonia -
Target gas Ammonia Description Gas calibrated module (mounted SB-53) with waterproof case. No concentration output. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-500 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Alarm output Waterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3001-99NC-03/50
Usage：Home gas leak detectorTarget gas：LNG(Methane)/CO -
Target gas LNG(Methane)、CO Description Gas calibrated module (mounted SB-95-12) without waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range CH4 0, 0.03-1 %
CO 0, 30-1000 ppmPower supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3001-99C4-03/50
Usage：Home gas leak detectorTarget gas：LNG(Methane)/CO -
Target gas LNG(Methane)、CO Description Gas calibrated module (mounted SB-95-12) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range CH4 0, 0.03-1 %
CO 0, 30-1000 ppmPower supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3031-99NC-30/50
Usage：Home gas leak detectorTarget gas：LNG(Methane) -
Target gas LNG(Methane) Description Gas calibrated module (mounted SB-12A) without waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3031-99C4-30/50
Usage：Home gas leak detectorTarget gas：LNG(Methane) -
Target gas LNG(Methane) Description Gas calibrated module (mounted SB-12A) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3051-99NC-01/03
Usage：Home gas leak detectorTarget gas：CO -
Target gas CO Description Gas calibrated module (mounted SB-500-12) without waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3051-99C4-01/03
Usage：Home gas leak detectorTarget gas：CO -
Target gas CO Description Gas calibrated module (mounted SB-500-12) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3062-99NC-10/20
Usage：Refrigerant gas/Home appliancesTarget gas：LPG(Propane, butane) -
Target gas LPG(Propane, butane) Description Gas calibrated module (mounted SB-15C) without waterproof case. Concentration output function included . Sensing principal of mounted gas sensor Semiconductor type Measurement range Isobutane 0, 300-10000 ppm Power supply DC5V ±5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3062-99C4-10/20
Usage：Refrigerant gas/Home appliancesTarget gas：LPG(Propane, butane) -
Target gas LPG(Propane, butane) Description Gas calibrated module (mounted SB-15C) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range Isobutane 0, 300-10000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3072-99NC-03/10
Usage：ーTarget gas：H2/Ethanol/VOC -
Target gas H2、Ethanol、VOC Description Gas calibrated module (mounted SB-AQ1) without waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3072-99C4-03/10
Usage：ーTarget gas：H2/Ethanol/VOC -
Target gas H2、Ethanol、VOC Description Gas calibrated module (mounted SB-AQ1) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-1000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3082-99NC-10/50
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Refrigerant（R410a) -
Target gas Refrigerant gas（R410a) Description Gas calibrated module for R410a without waterproof case. Concentration output function included . Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3082-99C4-10/50
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Refrigerant（R410a) -
Target gas Refrigerant gas（R410a) Description Gas calibrated module for R410a with waterproof case. Concentration output function included . Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 0.03-1 % Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS3091-99NC-01/03
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Ammonia -
Target gas Ammonia Description Gas calibrated module (mounted SB-53) without waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-500 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Not included Size 28 x 41 x 20 (H) mm Weight 5g
-
FIS3091-99C4-01/03
Usage：Refrigerant gas/Home appliances/Industrial leak detectorTarget gas：Ammonia -
Target gas Ammonia Description Gas calibrated module (mounted SB-53) with waterproof case. Concentration output function included. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 30-500 ppm Power supply DC5V ± 5% Current consumption Average current consumption 35mA Signal output Concentration
Sensor
Alarm outputWaterproof case Included Size 31×44×20 (H) mm Weight 19g
-
FIS5084-01NC
Usage：Refrigerant gas/Home appliancesTarget gas：Refrigerant（R32) -
Target gas Refrigerant gas（R32) Description IEC compliant product. Gas calibrated module (mounted SB-43A) without waterproof case. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 2000-10000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 40mA Signal output Alarm output Waterproof case Not included Size 26 x 26 x 20(H)mm Weight 5g
-
FIS5084-01C1
Usage：Refrigerant gas/Home appliancesTarget gas：Refrigerant（R32) -
Target gas Refrigerant gas（R32) Description IEC compliant product. Gas calibrated module (mounted SB-43A) with waterproof case. Sensing principal of mounted gas sensor Semiconductor type Measurement range 0, 2000-10000 ppm Power supply DC5V ± 5% Current consumption Average current consumption 40mA Signal output Alarm output Waterproof case Included Size 53 x 30 x 23.5(H)mm Weight 11g
-
SCK-03
Usage：-Target gas：- -
Description Gas sensor socket for SB series, SP3S-AQ2-01, SP3-61 Size 12.6×7.4×10.6(H)㎜ Weight 1.3g
Related item SB series
SP3S-AQ2-01
SP3-61-
-

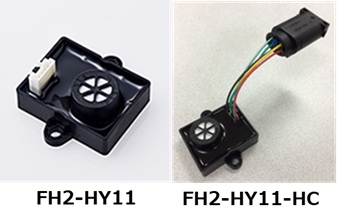

FH2-HY11
Usage：Fuel Cell/Industrial leak detectorTarget gas：H2 -
Target gas H2 Description Hydrogen module that can be used for detecting with either battery power supply or commercial and industrial electric supply Sensing principal of mounted gas sensor Catalytic type Measurement range 0 ~ 4 vol.% Power supply 5V ± 0.25V DC Current consumption Approx. 0.25W Signal output Analog Size 35.2 (W) x 45.4 (D) x 20.25 (H) mm Weight 24g
-
FH2-HY04-GS2
Usage：Automobile - Fuel CellTarget gas：H2 -
Target gas H2 Description Sensor module for detecting hydrogen leakage from fuell cell vehicle (FCV). Sensing principal of mounted gas sensor Catalytic type Measurement range 0 ~ 4 vol.% Power supply 12V (9 ~ 16V) DC Power consumption ≤1000mW Signal output PWM IP code IP6K7 Size 82.6 (W) x 80.8 (D) × 22.5 (H) mm Weight 58g
-
FH2-HY05-GS1
Usage：Automobile - Fuel CellTarget gas：H2 -
Target gas H2 Description Sensor module for detecting hydrogen leakage from fuell cell vehicle (FCV). Sensing principal of mounted gas sensor Catalytic type Measurement range 0 ~ 4 vol.% Power supply 12V (9 ~ 16V) DC Current consumption Approx. 1.0W Signal output CAN Standard CAN ID 20A,202 Waterproof case Not included Size 62 (W) x 49 (D) × 22.5 (H) mm Weight 60g
-
FH2-HY06-GS2
Usage：Automobile - Fuel CellTarget gas：H2 -
Target gas H2 Description Sensor module for detecting hydrogen leakage from fuell cell vehicle (FCV). Sensing principal of mounted gas sensor Catalytic type Measurement range 0 ~ 4 vol.% Power supply 24V (16~32V) DC Power consumption ≤500mW Signal output CAN Standard CAN ID 0x0CFF1C90, 0x0CFF1C91 IP code IP6K7 Size 82.6 (W) x 80.8 (D) × 22.5 (H) mm Weight 60g
-
OralChroma CHM-2
Usage：Breath analysis - Oral ChromaTarget gas：Sulfide (Methyl mercaptan・ Dimethyl sulfide）/Hydrogen sulfide -
Target gas Hydrogen sulfide, Methyl mercaptan, Dimethyl sulfide Description This device separates VSC in 3 element gases and measures its concentration. UL/CE compliant product. Measurement range Hydrogen sulfide 50 - 1000 ppb
Methyl mercaptan 50 - 1000 ppb
Dimethyl sulfide 50 - 1000 ppbMeasuring time 4 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 1cc Power supply AC 100V Current consumption 27VA (Max.60VA) Signal output USB/Bluetooth Size 280 (W) x 385 (D) x 170 (H) Weight 4kg
-
SGC（Sensor Gas Chromatograph）
ODSA-P3-AUsage：Research・Analysis - Enviromental measurement/Breath analysis - OthersTarget gas：Sulfide (Methyl mercaptan・ Dimethyl sulfide）/Hydrogen sulfide -
Target gas Hydrogen sulfide, Methanethiol, Dimethyl sulfide Description Hydrogen sulfide, methanethiol, and dimethyl-sulfide can be separated and detected at the ppb level without concentrating the sample. Measurement range Hydrogen sulfide 2-1000 ppb
Methanethiol 5-1000 ppb
Dimethyl sulfide 5-1000 ppbMeasuring time 4 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 2cc Power supply AC 100V or AC 220V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×340(D)mm Weight 5.5kg
-
SGC（Sensor Gas Chromatograph）
ODNA-P3-AUsage：Research・Analysis - Enviromental measurementTarget gas：Ammonia -
Target gas Ammonia Description Ammonia can be detected at the ppb level without concentrating sample. Measurement range Ammonia 30-10000 ppb Measuring time 4 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 2cc Power supply AC 100V or AC 220V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×340(D)mm Weight 5.5kg
-
SGC（Sensor Gas Chromatograph）
ODNA-P3-BUsage：Research・Analysis - Enviromental measurementTarget gas：Trimethylamine -
Target gas Trimethylamine Description Trimethylamine can be separated and detected at the ppb level without concentrating sample. Measurement range Trimethylamine 10-10000 ppb Measuring time 8 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 2cc Power supply AC 100V or AC 220V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×340(D)mm Weight 5.5kg
-
SGC（Sensor Gas Chromatograph）
SGHA-P3-AUsage：Automobile - Others/Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：H2/CO -
Target gas H2、CO Description H2 and CO can be separated and detected at the ppb level without concentrating sample. (for low concentration) Measurement range H2 10-10000 ppb
CO 50-10000 ppbMeasuring time 2 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 1cc Power supply AC 100V or AC 220V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×340(D)mm Weight 5.5kg
-
SGC（Sensor Gas Chromatograph）
SGHA-P3-BUsage：Automobile - Others/Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlement/Breath analysis - OthersTarget gas：H2/CO -
Target gas H2、CO Description H2 and CO can be separated and detected at the ppm level without concentrating sample. (for high concentration) Measurement range H2 1000-100000 ppb
CO: 1000-100000 ppbMeasuring time 4 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 1cc Power supply AC 100V or AC 220V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×340(D)mm Weight 5.5kg
-
SGC（Sensor Gas Chromatograph）
SGEA-P3-AUsage：Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlement/Breath analysis - OthersTarget gas：Ethanol/Halitosis/Acetaldehyde/Acetone/Isoprene -
Target gas Acetone、Ethanol、Acetaldehyde、Isoprene Description Acetone, ethanol, acetaldehyde and isoprene can be seperated and detected at the ppb level without cocentrating sample. Measurement range Acetone 20-50000 ppb
Ethanol 200-100000 ppb
Acetaldehyde 5-10000 ppb
Isoprene 10-10000 ppbMeasuring time 8 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 5cc Power supply AC 100V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×435(D)mm Weight 6.5kg
-
SGC（Sensor Gas Chromatograph）
SGEA-P3-BUsage：Automobile - Others/Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：Acetaldehyde -
Target gas Acetaldehyde Description Acetaldehyde can be detected at the ppb level without cocentrating sample. Measurement range Acetaldehyde 5-10000 ppb Measuring time 8 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 5cc Power supply AC 100V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×435(D)mm Weight 6.5kg
-
SGC（Sensor Gas Chromatograph）
SGEA-P3-C1Usage：Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：Ethylene -
Target gas Ethylene Description Ethylene can be detected from 5 ppb without concentrating sample Measurement range Ethylene 5-10000 ppb Measuring time 4 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 5cc Power supply AC 100V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×435(D)mm Weight 6.5kg
-
SGC（Sensor Gas Chromatograph）
SGEA-P3-C2Usage：Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：Ethylene/Acetaldehyde -
Target gas Ethylene、Acetaldehyde Description Ethylene and acetaldehyde can be seperated and detected at the ppb level without cocentrating sample. Measurement range Ethylene 50-10000 ppb
Acetaldehyde 100-10000 ppbMeasuring time 8 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 5cc Power supply AC 100V Current consumption Approx. 100VA Signal output USB Size 260(W)×135(H)×435(D)mm Weight 6.5kg
-
PDHA-1000、PDHA-2000、PDHA-3000
Usage：Automobile - Others/Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：H2 -
Target gas H2 Description This device can analyze the temperature desorption of H2 at the ppb level, from room temperature to 600℃ (with PDHA-1000), 800℃(with PDHA-2000),1000℃(with PDHA-3000)under atmospheric pressure Measurement range H2 10-10000 ppb Measuring time 2 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 1cc Power supply AC 100V Current consumption Approx. 1000VA(Total) Signal output USB Size 260(W)×135(H)×340(D)mm, other Please refer to the catalog Weight Please refer to the catalog
Related item
-
PDHA-4000
Usage：Automobile - Others/Research・Analysis - Enviromental measurement/Research・Analysis - Hydrogen embrittlementTarget gas：H2 -
Target gas H2 Description PDHA-4000 can analyze the temperature desorption of H2 at the ppb level, from -100℃ to 800℃ under atmospheric pressure Measurement range H2 10-10000 ppb Measuring time 2 min. Carrier gas Filtered clean ambient air Detector Semiconductor gas sensor Sampling gas amount 1cc Power supply AC 100V Current consumption Approx. 1000VA(Total) Signal output USB Size 260(W)×135(H)×340(D)mm, other Please refer to the catalog Weight Please refer to the catalog
Related item
In the interest of continued product improvement, we reserve the right to change design features without prior notice.
